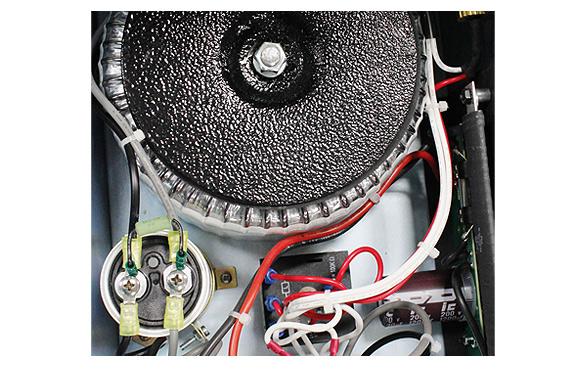

AC-DC Power Supply
POWERTRONIX AC-DC Linear Power Supply provides Long Life, Highly Reliable, Robust Design in Rugged Conditions. Single phase or three phase AC inputs with six and twelve pulse conversion for DC smoothness.
Application
- Medical
- Automatic test equipment
- Security system
- Laboratory test equipment
- Control circuits
- Anywhere that required excellent regulation and/or low ripple
-
Features
- Power Range: 200W to 2000W
- Frequency: 47Hz to 63Hz
- Input Voltage: 100 – 120 V / 200 – 240 V (Worldwide input voltage)
- Three phase – 6 or 12 pulse conversion.
- Output Voltage Range :12Vdc to 76Vdc
- Output Current Range:4.2Adc to 37Adc
- Power factor : 0.6 to 0.8
- Ripple: 3% - 10%
-
Safety
- UL, cUL, TUV
- ANSI/AAMI ES 60601, IEC/EN 60601-1
- IEC/EN 61010, IEC 60950
- CE Marked
-
Mounting
- L Bracket
- Fully enclosed
- Customize mounting according to specific requirement
- Contact Powertronix for additional mounting requirement
-
Info
- Low Electrical Ripple and Noise
- Faster Transient Response
- Low Leakage Current and conducted EMI
- High Reliability
- Contact Powertronix at Tel: (650) 345-6800 for your AC-DC Power Supply design and requirement.
